The Rainbow has upped its game - Introducing the R2, the sequel to the original Rainbow Linear LED Light. This design adds a plethora of new features, while keeping the same sleek, sturdy low-profile shape as all the legacy Quasar products you have grown to love. The R2 is offered in three lengths: Q100R2 at 91 in/232 cm, Q50R2 at 47 in/120 cm and Q25R2 at 23 in/59 cm.
We are now offering multi-pixel control without compromising the clean color or high output that we have always been known for. The Q25 offers 10
pixels, the Q50R2 has 24 pixels, and the Q100R2 allows for 48 separate pixels.

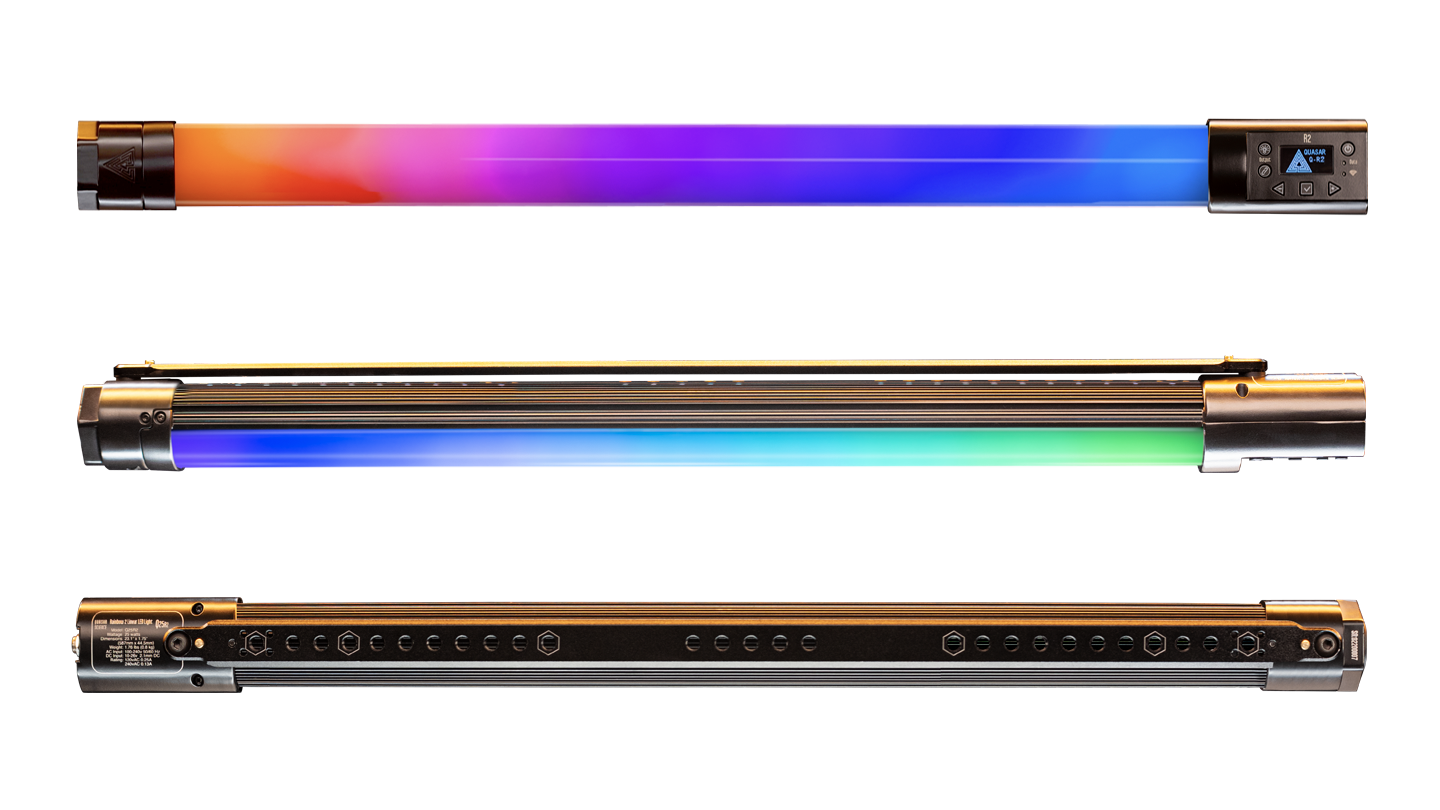

(R2 LEDs are sold as single units. 3 are shown in the photo to illustrate.)
The Swaptics™ Interchangeable Lens System
Also available as an optional accessory is our new Swaptics™ Interchangeable Lens System. The slim diffuser (included with the lights) and two swappable lenses, the Light Barrel™ large diffuser and the Light Magnifier™ projection lens, are available for purchase.
We have upped the caliber for rigging with the RAIL™ Mounting System, giving you the most versatility of any rigging system yet. In collaboration with Key Grip and Hardware Designer, Chuck Smallwood of G-Force Grips, both the RR and R2 lights include the QS Slider to mount anywhere along the back of the light and the QS Baby Pin to attach onto your slider. (See below for more info.)
We know how important efficiency is on set, so we have designed an onboard rigging system.
Straight out of the box, you will be able to rig your Quasars. No more buying additional clamps or metal clips. The R2 will come standard with a mounting rail down the back of the light, lined with 1/4-20 mounting points.
Two attachments will come with the purchase of each light. The first is the QS Slider, which allows you to slide the rigging point anywhere along the plane of the linear light. The second is the QS Baby Pin to mount to the QS Slider or directly to the rail itself.
We are offering two additional accessories for the RAIL™ Mounting System that are sold separately. The QS Rotator Block allows you rotate the light 360 degrees on any mounted 5/8” or 3/8” pin or rod. We are also offering an attachment to rig your V-Mount batteries onto the light for any run and gun type filming. Keeping an external battery enables easy battery changes. Once you experience the ease of rigging and positioning with the RAIL™ mounting system, you’ll never want to go back.
- RGBX 2000-6000K Crossfade White Light with RGB Color Mixing
- QS Pixel Control
- Manual Interface with OLED Screen
- Mounting Rail with 3/8-16 & 1/4-20 Threaded
- Output Enabled Button
- Universal AC Power 100v-240v
- Auxiliary DC Input 10-26v
- Improved Low End Dimming
- Finer Dimming Control
- Integrated Power Button
- Lead / Follow Mode
- Expanded Onboard Effects
- Rig Mode
Q25R2 - 23x1.75 in / (584.2x44.45mm)
Q50R2 - 46.9x1.75 in / (1161.7x44.45mm)
Q100R2 - 90.86x1.75 in / (2307.8x44.45mm)
Q25R2 - 1.76lbs / (0.8kg)
Q50R2 - 3.306lbs / (1.5kg)
Q100R2 - 5.95lbs / (2.7kg)
Q25R2 - 10 Pixels - 25 watts
Q50R2 - 24 Pixels - 50 watts
Q100R2 - 48 Pixels - 100 watts
Power Connect & Voltage:
- Self Ballasted AC range 100VAC to 240VAC via Neutrik True1 connect.
- DC range 10VDC to 26VDC via 5.5 x 2.1mm Locking Barrel connect.
- OLED screen with digital interface
- Wired Control via Cat5/6
- Wireless DMX Control by Lumen Radio CRMX Wireless + Bluetooth
- Robust Industry Standard
- Easy Pairing
- Compatible with W-DMX Transmitters
- Artnet over Wifi
- Lead/Follow Mode for operation from one tube to control multiple tubes
Included with every lamp:
- 1 - QS Slider
- 1 - QS Dual Screw Baby Pin
- 1 - Set of Q Boot-R2 (1 Power End, 1 Control End)
- 1 - 8' True 1 Power Connector Cable
- 1 - Quick Start Manual
- 1 - Shortcut Card
