Rainbow 2

Creative agility, ultimate control

The Rainbow 2 (R2) is the ultimate linear LED for motion picture and content creation.

WATCH FEATURE OVERVIEW

Rainbow2

Creative agility, ultimate control

The Rainbow 2 (R2) is the ultimate linear LED for motion picture and content creation.

WATCH FEATURE OVERVIEW

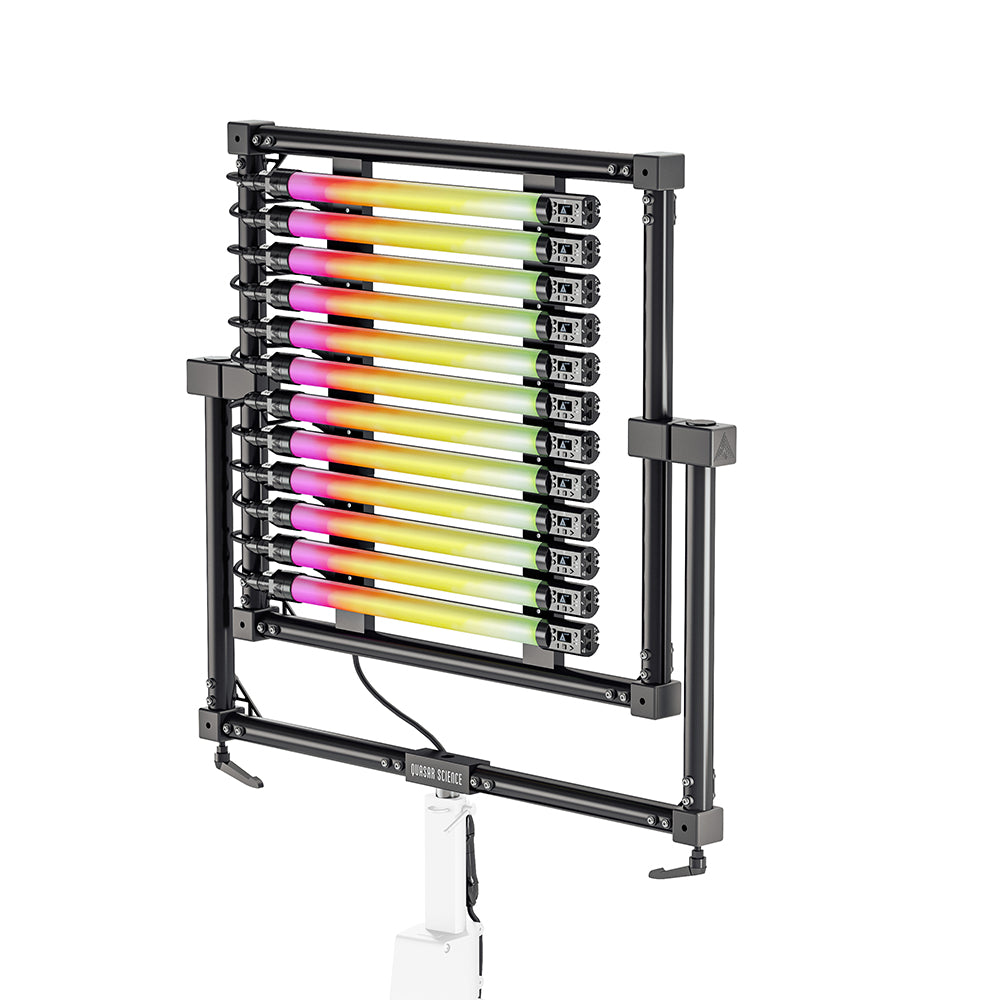

Ossium Frame & Rainbow 2

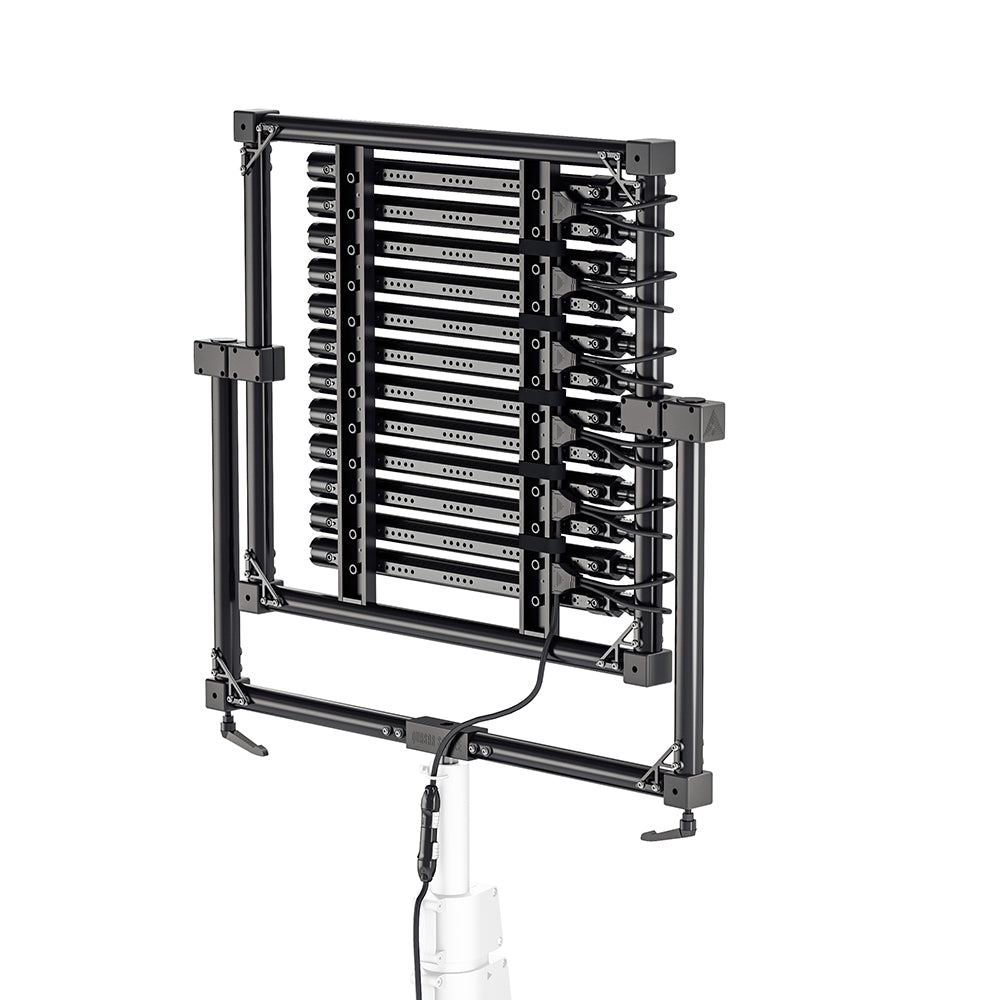

Ossium Frame & Rainbow 2 - Back

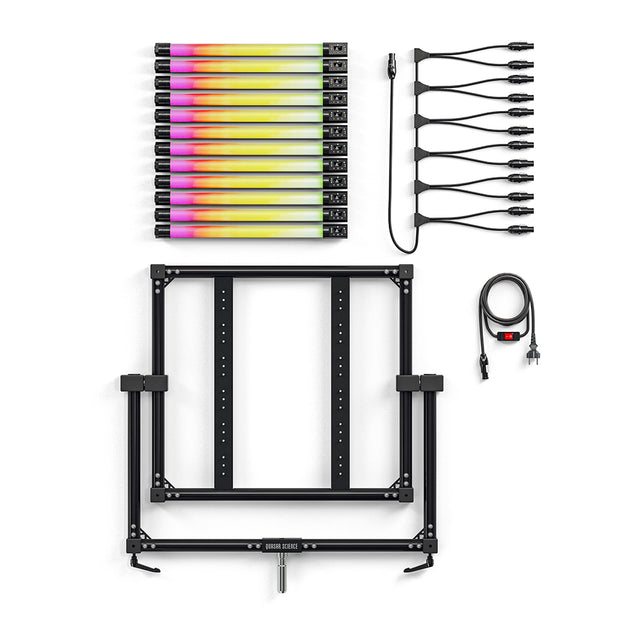

Ossium Frame & Rainbow 2 complete kit

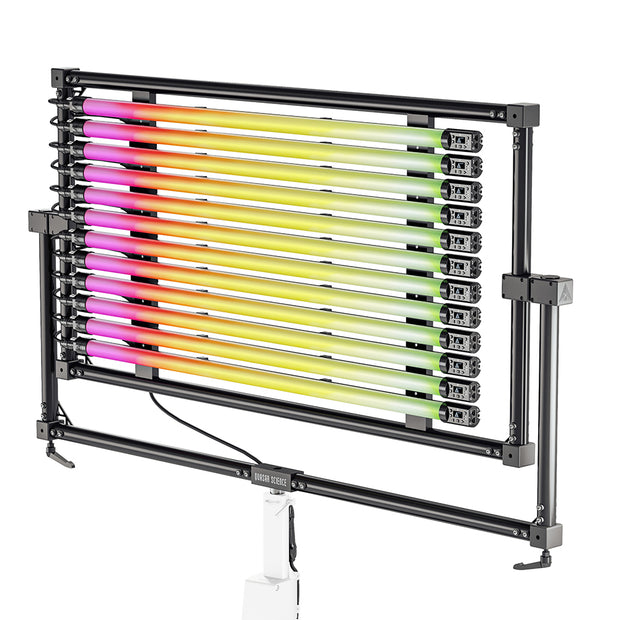

Ossium Frame & 4ft Rainbow 2

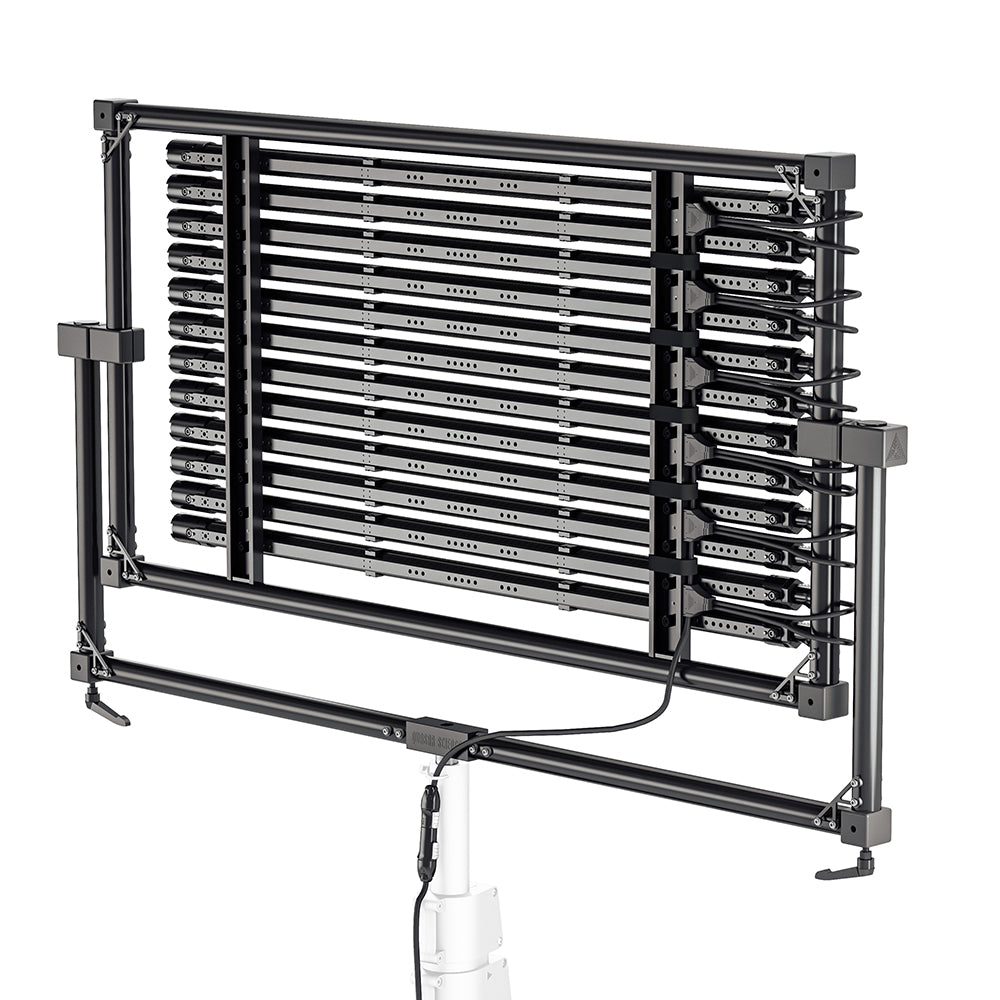

Ossium Frame & 4ft Rainbow 2 back

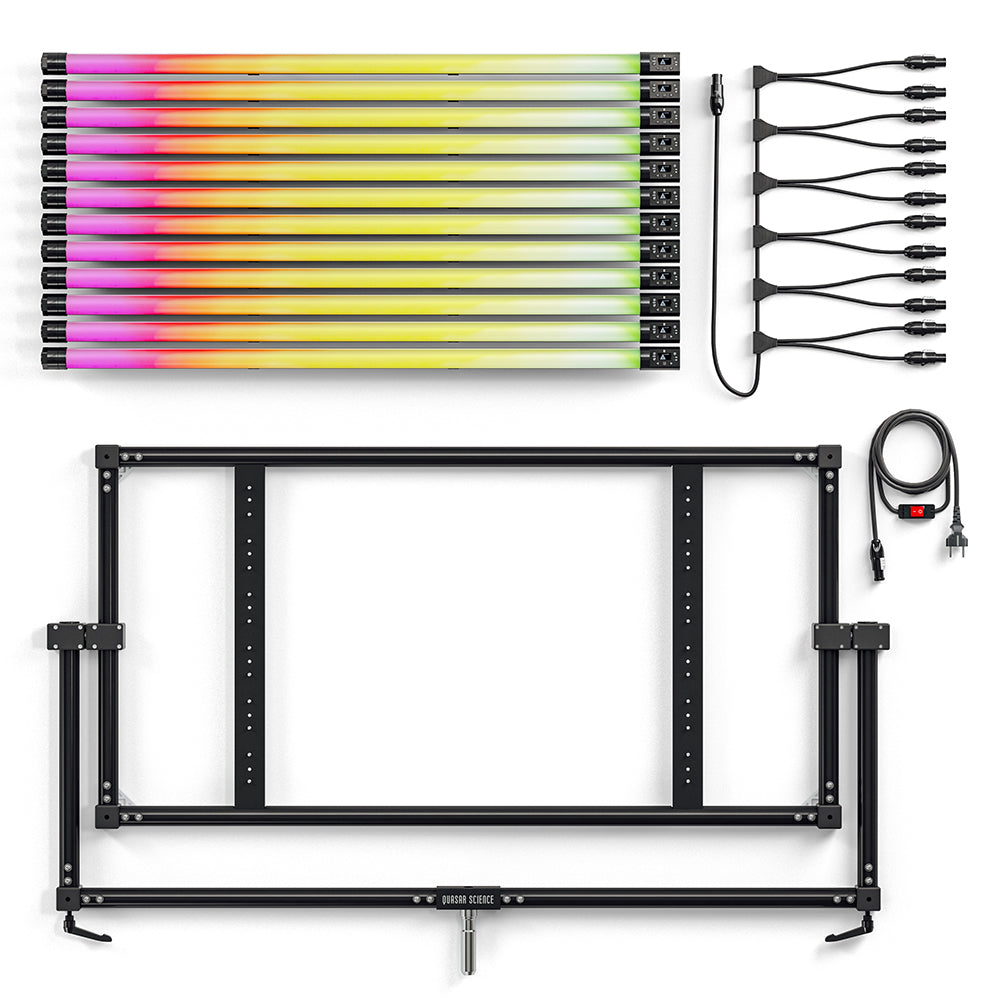

Ossium Frame & 4ft Rainbow 2 complete kit

924-2123

Ossium Frame c/w Rainbow 2

Regular price$ 8,900.00
/

Top Product Highlights

  • Solid Ossium Frame supports array of Rainbow tubes
  • Rainbow 2 and Double Rainbow bolt on using integrated Ossium Rail
  • Includes twelve 2ft OR 4ft Rainbow 2 tubes
  • High quality tunable white light and high RGB color saturation
  • Stacked array of 120 individually addressable pixels
  • Direct connect of every industry standard wired and wireless control option
  • Frame includes yoke with Jr Pin for rigging
  • Includes 3 years warranty on lights, 2 years warranty on accessories

Frame your world in a whole new light

Rig faster, look good, make friends. Ossium Frame Arrays are the simple surround for elaborate image-based lighting, and the perfect flank to a virtual set.

Rainbow 2

Build a wall of pixels with smarter rigging

Combine Rainbow tubes into stacked arrays to create a wall of light. Both Rainbow 2 and Double Rainbow bolt on using the integrated Ossium Rail, supported by the solid Ossium Frame. Power up with the included multibank adaptor, and add data for dynamic control of your lighting array.

Direct Connect of every industry standard wired and wireless control option from DMX and Bluetooth through to sACN. Simple to set up, with the power to be complex in all the right ways.

Unleash the power of image-based lighting

Design light that’s as dynamic as any world – real or virtual. Each pixel in the stacked array receives its own unique data, allowing the Rainbows to produce dramatic image-based lighting at scale.

This is beautiful, full spectrum image-based lighting that illuminates your scene with integrity. Add in Quasar’s unique VRGB profiles for virtual production engines, and the ability to render in sync with a volume wall and you have the key to virtual production realism in your wall of lights.

Modular for a virtually perfect fit anywhere

When you need extra light elsewhere there’s always an option with an Ossium Frame Array. It stands larger than your average panel as a whole and gives the unique possibility to remove single tubes for expanded flexibility.

Each Rainbow offers high quality tunable white light and the highest color saturation with super smooth, flicker free dimming in an ultra-low-profile format. No more searching for another fixture, just flex what you have on set to get it done.

Double Rainbow

LOOKING TO BUY LOCALLY OR SHIP OUTSIDE OF THE U.S.?

A sleek shape provides a powerful light source using little space.

From lighting actors to environments, high quality tunable white light and the highest RGB color saturation with multiple pixels maintaining super smooth, flicker free dimming, the R2 will be your workhorse. This linear LED light offers incredible data connectivity whether wired or wireless and can be powered anywhere via AC and DC power inputs. Integrated Ossium Mounting System (OMS) allows for rigging in ways previously unobtainable.

DOWNLOAD BROCHURE
parallax

Color Science

The unique RGBX Spectral Science Color Engine (RGBX SSCE) in the  R2 delivers a choice of more than one billion colors. RGBX SSCE provides the complete range of potential spectral fingerprints available for each color within its entire gamut of color possibilities.

To create the lighting industry’s most intuitive and natural color control experience, the RGBX SSCE maps its color calculations in the perceptually uniform CIE 1976 chromaticity space.

Watch Color Science
Color science

Connectivity

Connectivity with Rainbow 2 - Ethernet, WIFI, Bluetooth, sACN, ArtNet and CRMX

With every industry standard wired and wireless option, the Rainbow Series provides advanced networking architecture solutions and scalable options. With no need for additional data boxes, receivers or transmitters.

The Rainbow 2 has a built-in Ethernet Node expanding data versatility.

Watch Connectivity
Phone demonstrating the connectivity of the Rainbow 2

Mounting

Ossium Mounting System (OMS) integrates seamlessly and efficiently with industry standard hardware for safer, faster rigging with greater precision and style.

LEARN MORE ABOUT OMS
Ossium Mounting System integrating with industry standard hardware

Pixelation

With more pixels and greater control than any other tube lights, Rainbow fixtures produce more realistic animation to take your lighting effects to a whole new realm. More than just volume, spectrally-based color calibration provides each pixel with dependable vibrant color values.

Output

Vibrant saturated colors and the most intense white light, deliver great results in any situation.

Power Anywhere

Power R2 lights anywhere with plug and play AC and DC capabilities. Direct AC input without power supply, or The Ossium Battery Plate making swapping batteries seamless reducing down time on set.

360 degree view of the Rainbow 2

Universal AC & DC Power Inputs

The R2 can be powered through either the universal AC power input for mains power anywhere or the auxiliary DC input for use with power bricks and battery packs.

Expanded Onboard FX Engine

The R2 is enabled with generous FX presets with a multitude of new parameter controls allowing you to fine tune everything from Emergency to Paparazzi. Adjust Hi/Low Intensities, Speed, Color and more.

Highly accurate white light

CCT 1,750-10,000k with high color rendition (SSI up to 91, TM30 up to 94, CRI up to 95)

Ossium
Mounting
System

Rail, Slider and Baby Pin included for simple mounting

Remote Control Options

Wired: DMX, sACN, Art-Net Wireless: CRMX, W-DMX, Bluetooth, sACN and Art-Net

Technical Specifications

PART924-2301924-2302
ModelQ25R2Q50R2
Pixels10 pixels24 pixels
WattageMax 25WMax 50W
Weight1.76lbs (0.8kg)3.30lbs (1.50kg)
Dimensions23 x 1.75 in (584.2 x 44.45 mm)46.9 x 1.75 in (1161.7 x 44.45 mm)
Power (vac)120vac = 0.25 amp / 240vac = 0.13 amp120vac = 0.45 amp / 240vac = 0.25 amp
Power (vdc)    12vdc = 2.50 amp / 24vdc = 1.30 amp12vdc = 4.50 amp / 24vdc = 2.30 amp
